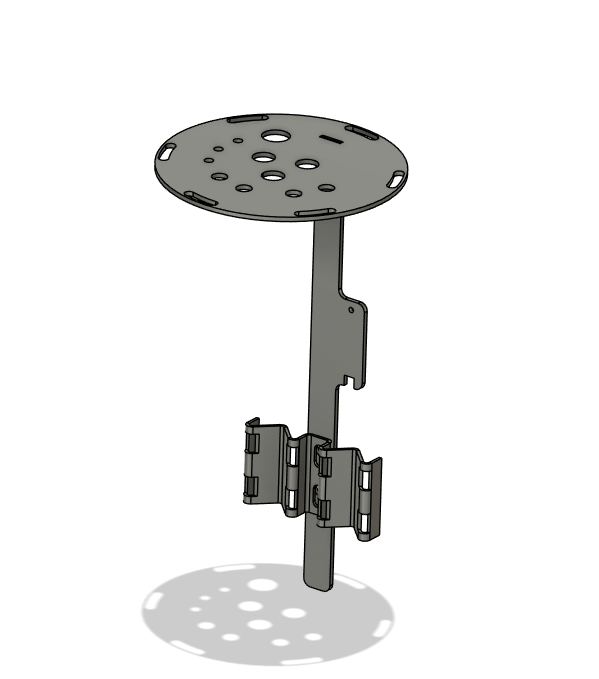

Nissan Patrol Dual Fuel Pump Hanger

Our Dual Fuel Pump Hanger for GQ/GU Patrol is the perfect option when needing an EFI fuel sender for petrol conversions or engine conversions. This modular design allows either one or two Walbro/Raceworks/DeatschWerks style fuel pumps or any aftermarket fuel pumps with similar dimensions to be mounted into your Patrols fuel tank.

This fuel pump hanger features twin outlets and single inlet in either AN6 or AN8 configuration to suit your fuel pumps flow needs. With our bolt on slotted lower pump mount you can also dial in the pick up height of your pumps, depending on the fuel strainers you use. If you would like to retain the factory fuel sump inside the tank this is the fuel pump hanger for you, you will need to use the Aftermarket Industries low profile stainless fuel pump filters. Select your fuel pump from the link below.

https://aftermarketindustries.com.au/fuel-filters-c169/

Features:

• CAD Designed & Laser cut
• 3mm AL5005
• TIG Welded

• Australian designed & manufactured

Included:

Bare Hanger:

• 1 x Dual Pump Hanger Assembly
• 1 x Hardware Kit

Hanger w Fittings & Bulkheads

• 1 x Dual Pump Hanger Assembly
• 3 x Fuel Sender Wiring bulkheads
• 4 x Hi-amp Fuel Pump Wiring Bulkheads
• 3 x AN Fuel Bulkheads (AN6 or AN8)
• 1 x Hardware Kit

Pumps not included
